Description:
Concept architectural drawings for the art gallery, studio, and art manufactory at 2035 Delmar Boulevard., Saint Louis,
MO  63103.
  • Art Gallery:  The art gallery fronts Delmar Boulevard., in St. Louis' burgeoning downtown art/loft district.  The
    gallery enjoys a massive single space which may be divided with a flexible layout of movable partitions.  The
    gallery contains two offices with east facing windows overlooking St. Louis' signature Arch, separate men's and
    women's accessible facilities, a full kitchen for catered events, art storage, a combined dark room, and a janitorial
    closet.  The art gallery main exhibition space is 68' wide x 45' deep, tallying 3,060 s.f.
  • Loft Studio:  A loft studio with attached kitchenette and separate facilities provides a productive environment for
    resident artists.  The loft studio is 20' wide x 24' deep, tallying 480 s.f.
  • Art Manufactory:  Art is created in both the north half of the 10,000 s.f. main building, measuring 68' wide x 72' 8"
    deep less the lobby, tallying 4,400 s.f., and the 3,500 s.f. addition with loading dock.

File:                                                                                                                                                                Revision:
2035_Delmar_What_If#20 (Factory Layout of 20JUN07).axp (Anvil Express)                                20JUN07
  • Level 40 = Building
  • Level 68 = Lights & Bar Joists
  • Level 131 = Art Gallery (20JUN07)
Kitchenette

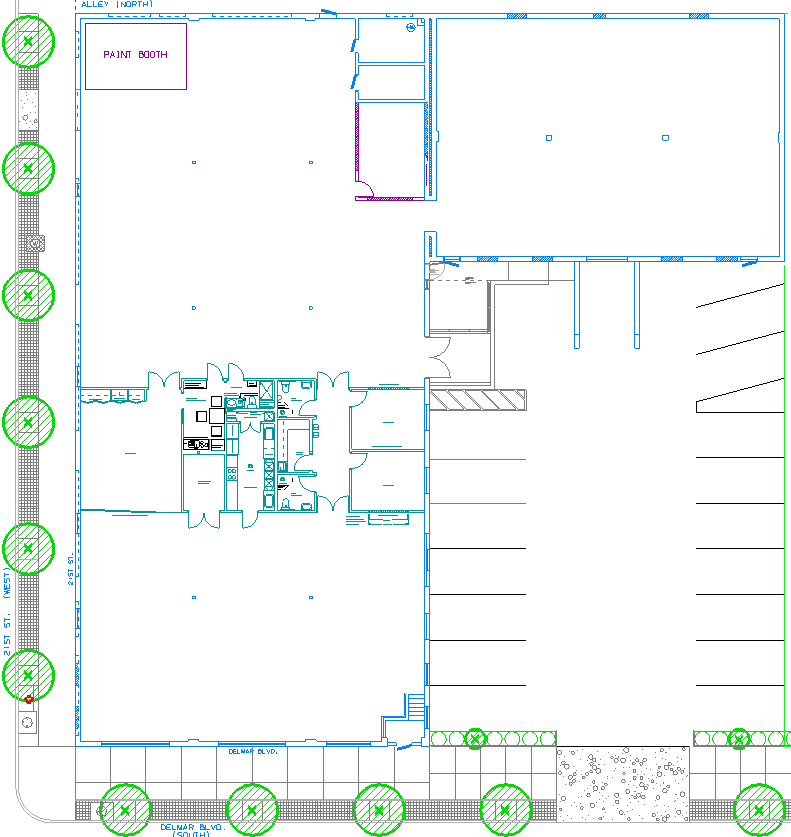

The Art Gallery, Loft Studio, and Art Manufactory
Office
The Interior Space
Kitchen
Art Manufactory
Art
Storage
Art Manufactory
Dark
Room
Loft
Studio
Women
Art2Part Gallery
Men
Accessible
Entrance
Unisex
Delmar Blvd
Entrance
Office
Art2Part Gallery
Parking

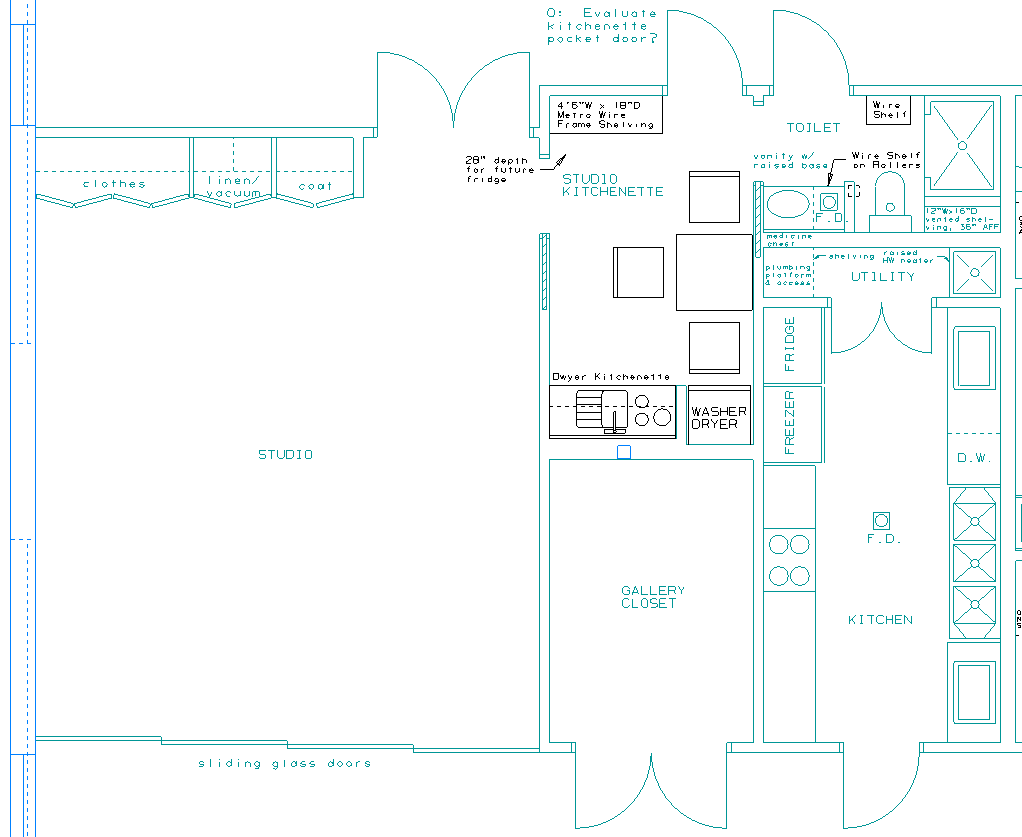

The Loft Studio & Kitchenette
Sliding Glass Doors
Emergency Exit &
Accessible Entrance
Through Art
Manufactory
Kitchenette & Bath
Doors Close to
Create Loft Studio
Sliding Glass Doors
Clothes Closet
Linen
Closet
Closet
