Description:

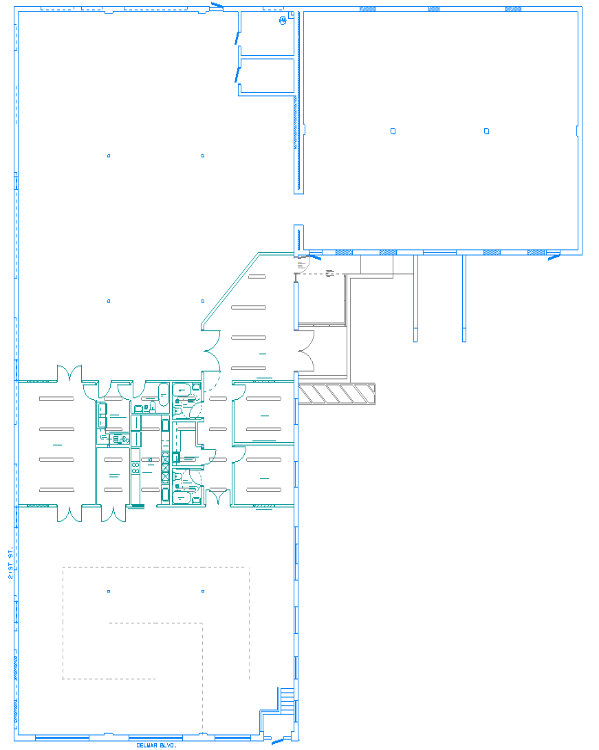

Concept architectural drawings for the art gallery, studio, and art manufactory at 2035 Delmar Boulevard., Saint Louis,
MO 63103.
File:
2035_Delmar_What_If#20 (Factory Layout of 27MAR07).axp (Anvil Express)
Concept architectural drawings for the art gallery, studio, and art manufactory at 2035 Delmar Boulevard., Saint Louis,
MO 63103.

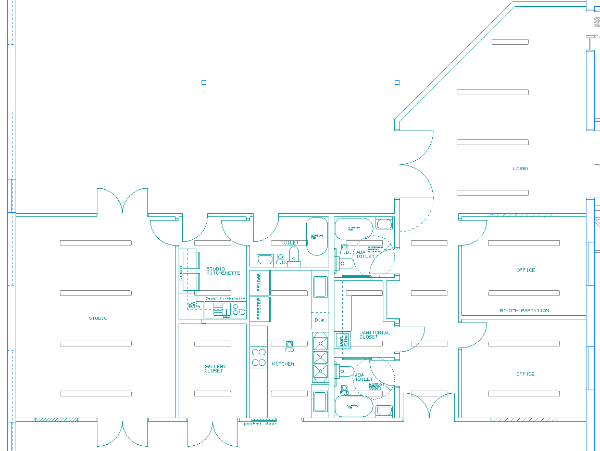

- Art Gallery: The art gallery fronts Delmar Boulevard., in St. Louis' burgeoning downtown art/loft district. The
gallery enjoys a massive single space which may be divided with a flexible layout of movable partitions. The
gallery contains two offices with east facing windows overlooking St. Louis' signature Arch, separate men's and
women's accessible facilities, a full kitchen for catered events, art storage, a combined dark room, and a janitorial
closet. The art gallery main exhibition space is 68' wide x 45' deep, tallying 3,060 s.f. - Loft Studio: A loft studio with attached kitchenette and separate facilities provides a productive environment for
resident artists. The loft studio is 19' wide x 24' deep, tallying 456 s.f. - Art Manufactory: Art is created in both the north half of the 10,000 s.f. main building, measuring 68' wide x 72' 8"
deep less the lobby, tallying 4,400 s.f., and the 3,500 s.f. addition with loading dock.
File:
2035_Delmar_What_If#20 (Factory Layout of 27MAR07).axp (Anvil Express)
- Level 40 = Building
- Level 68 = Lights
- Level 132 = Gallery (27MAR07)
The Art Gallery, Loft Studio, and Art Manufactory
The Interior Space
Art Manufactory
Art Manufactory
Loft
Studio
Studio
Art2Part Gallery
Accessible
Entrance
Entrance
Delmar Blvd
Entrance
Entrance
Lobby
Loft
Studio
Studio
Lobby
Art Manufactory
Kitchen-
ette
ette
Office
Kitchen
Art
Storage
Storage
Dark
Room
Room
Women
Men
Unisex
Office
Art2Part Gallery
Parking
